Air Line Connection 90 Degree (556)

Description:

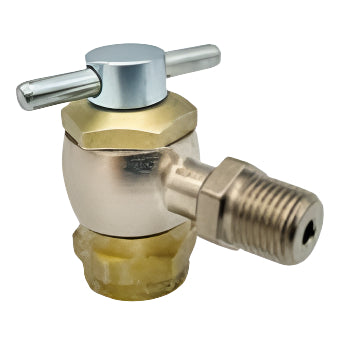

The Amflo 556 (or Haltec H-556) is a 90-degree angle high-pressure inflating connector designed for attaching to valve cap threads on high-pressure valves. It features a core depressor pin and a copper sealing washer, and is rated for pressures up to 3,000 PSI. The 90-degree angle allows for easier access to hard-to-reach valves. It is compatible with gauging and inflating devices and can be attached using hand or wrench.

Features & Benefits:

High-Pressure Rating: The connector is built to withstand pressures up to 3,000 PSI.

90-Degree Angle: The angled design allows for better access to valve stems in tight spaces.

Core Depressor Pin: This feature helps to depress the valve core, allowing air to flow freely when inflating or measuring pressure.

Copper Sealing Washer: The copper washer provides a tight seal to prevent air leaks.

1/8" MNPT: The male thread connection is 1/8" MNPT (Male National Pipe Taper).

Versatile Attachment: It can be attached to valve cap threads on high-pressure valves using either hand or wrench.

Compatibility: It is designed to be compatible with various gauging and inflating devices.
