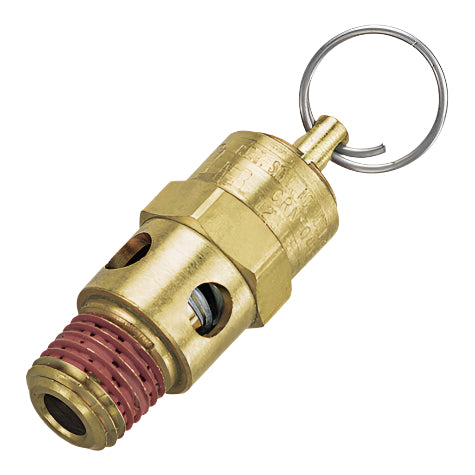

Safety Valve (21-709)

Description:

The Tru-Flate 21-709 is a 1/4" NPT, 150 PSI safety valve designed for pneumatic systems. It acts as a pressure relief valve, automatically releasing excess pressure to prevent over-pressurization and potential damage to equipment. This brass valve is constructed to ASME standards and is interchangeable with other ASME valves of similar size and pressure. It features a male nozzle at the inlet and a relief pressure reset for added safety.

Benefits & Features:

Function: Relieves excess pressure in pneumatic systems.

Connection: 1/4" NPT (National Pipe Thread).

Pressure Rating: 150 PSI (Pounds per Square Inch).

Material: Brass.

Standards: Constructed to ASME standards.

Interchangeable: Can be swapped with other ASME valves of the same size and pressure.

Reset: Comes with a relief pressure reset.

Application: Suitable for high production applications.

Additional Feature: Supplied with a magnetic ring for position sensing (in some models).
